Slimline Overhead Aluminium Cupboard for Campervans

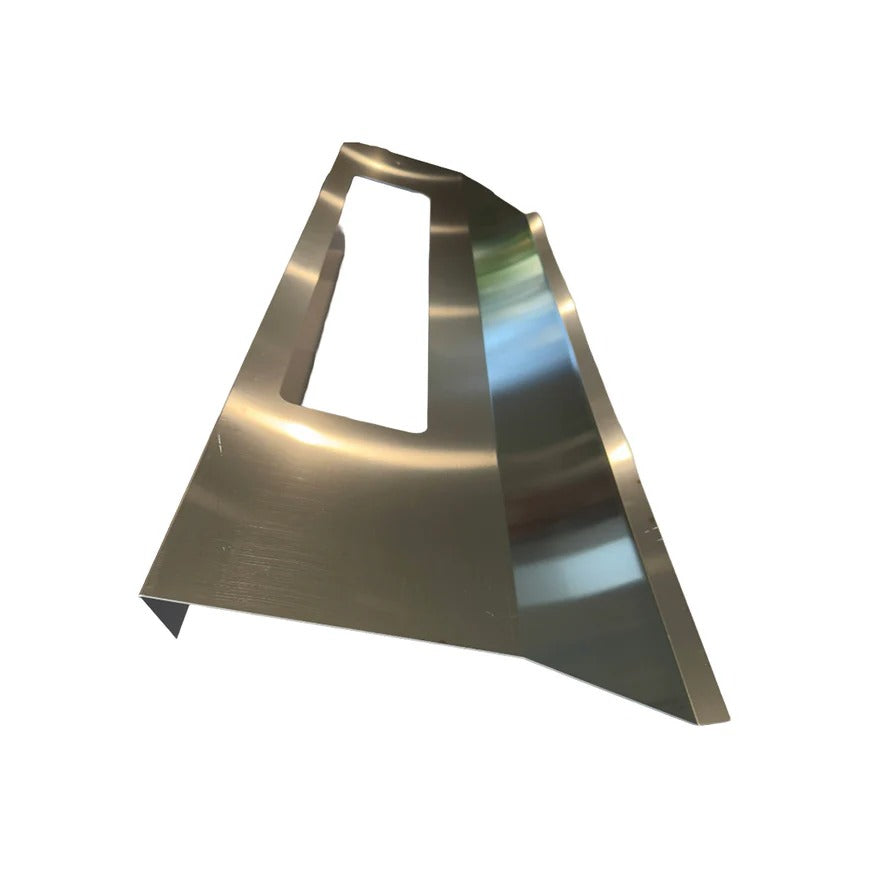

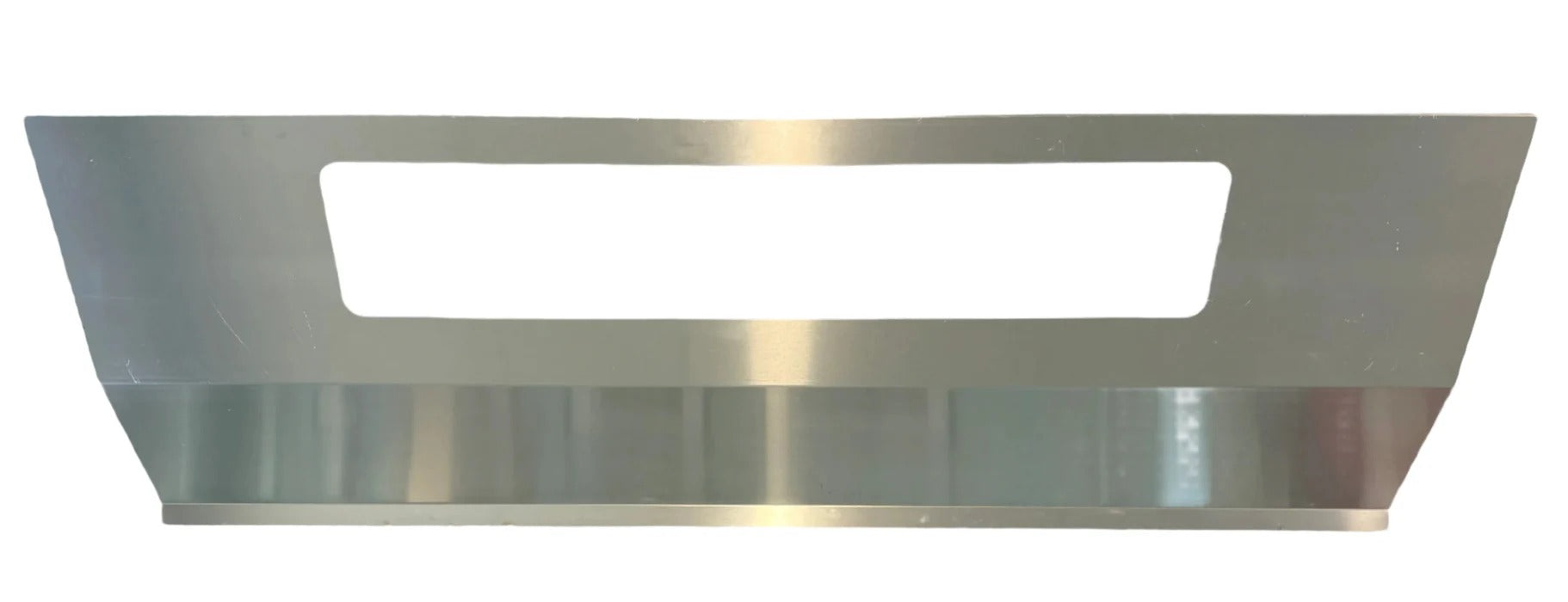

SLIMLINE OVERHEAD ALUMINIUM CUPBOARD - RAW FINISH

Add premium storage and a professional finish to your campervan build with the Slimline Overhead Aluminium Cupboard. Supplied in raw aluminium, this unit is laser cut, folded, and deburred for easy installation and a clean finish—ready for you to customise and install above kitchens, beds, or living zones in your van.

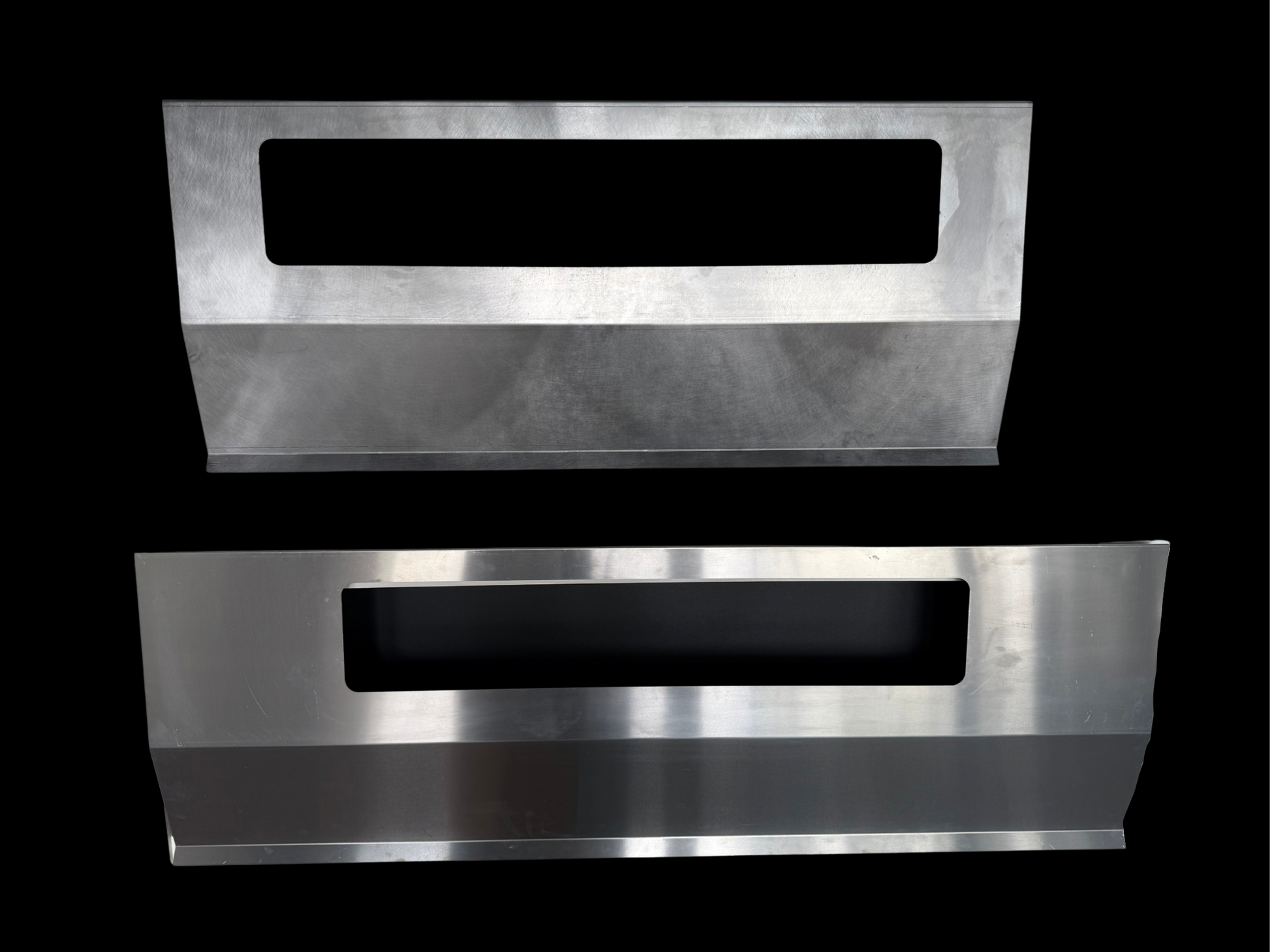

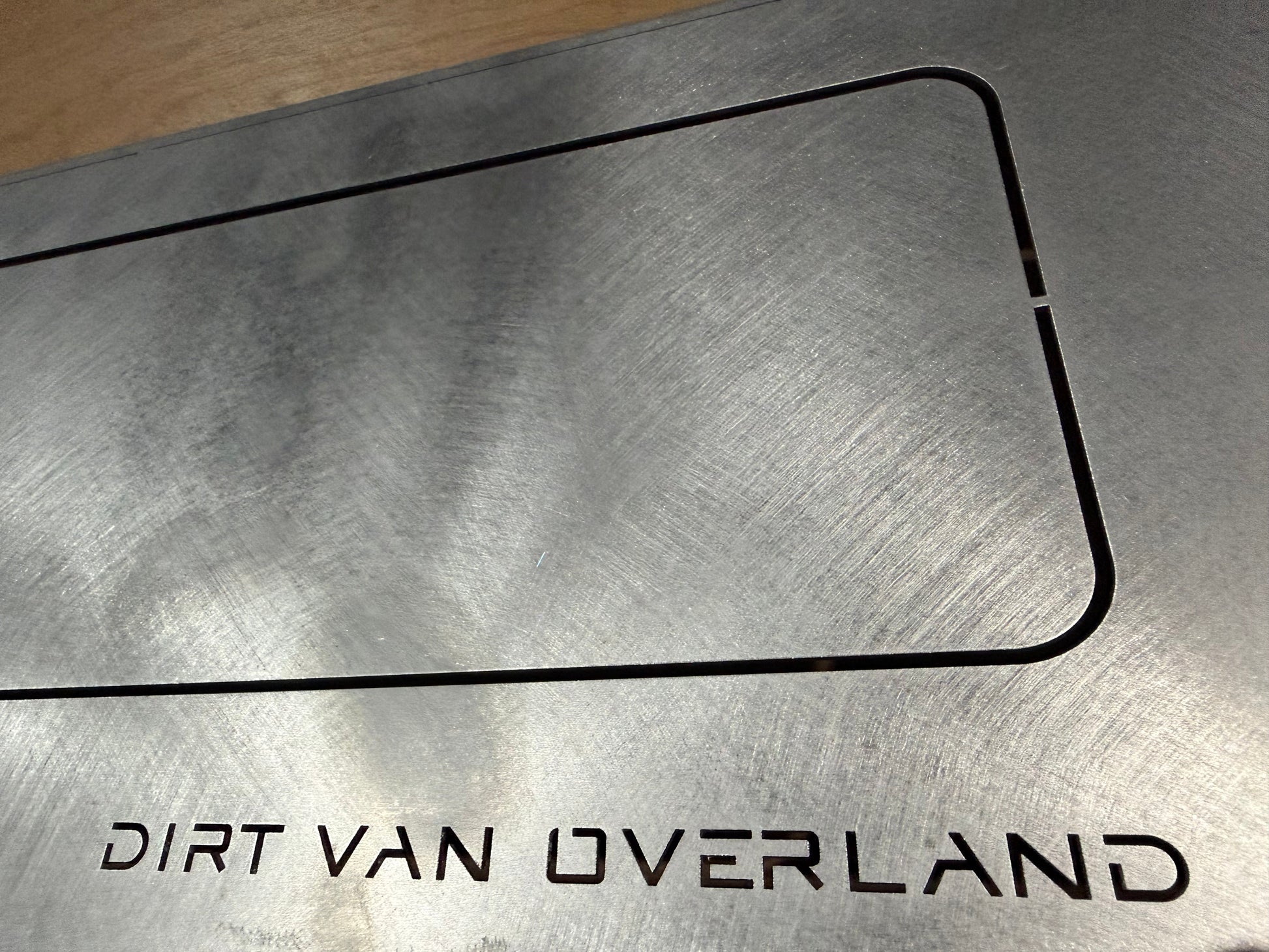

A central door cutout is pre-cut into the cupboard, positioned 50mm from the top edge, making it easy to use our hinge & latch kit available here on our site. Whether you're after a rugged look or a fully finished interior, this cupboard is built to adapt to your vision.

Key Features:

• Raw aluminium finish – ready to customise your way

• Supplied with a pre-cut opening (centered and positioned 50mm from top)

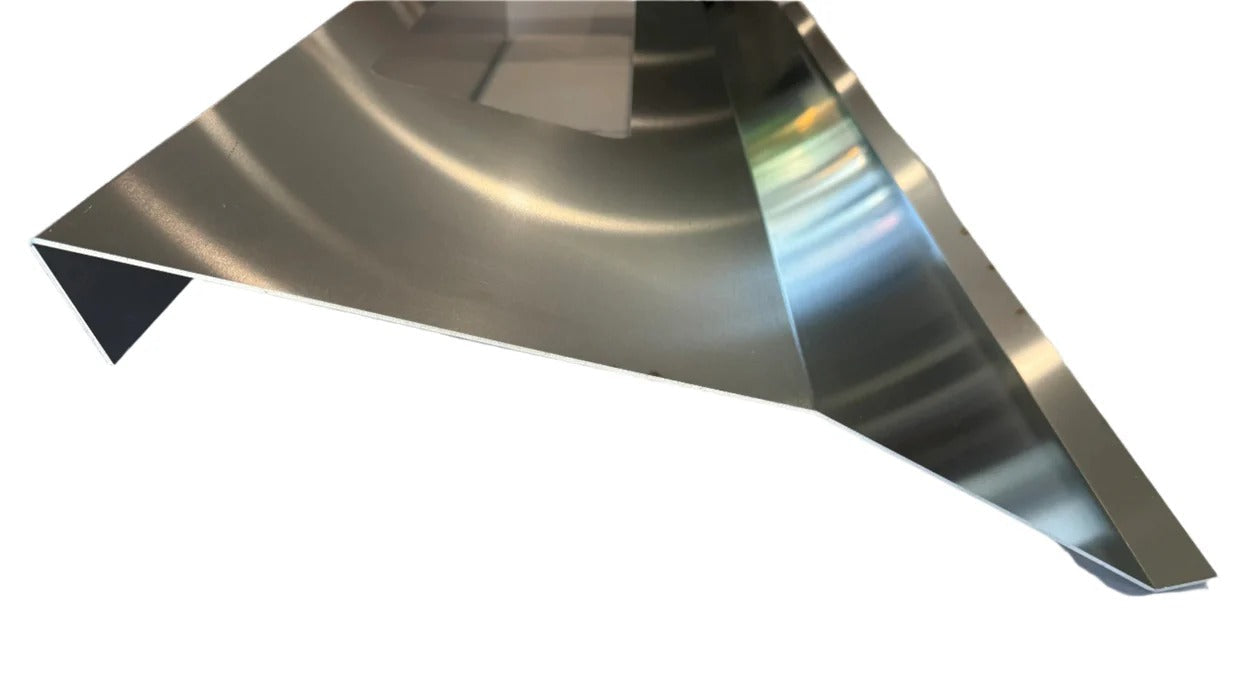

• Laser cut, folded and deburred & rounded edges for safety and ease of use

• End caps available – design flexibility retained

• Slimline profile for tighter spaces or lower-profile builds

• Ideal for overhead placement above kitchenettes, workbenches, or sleeping zones

Vehicle Compatibility:

• VW Crafter – High Roof & Low Roof

• VW Crafter with Fiberglass Roof

• Mercedes Sprinter – High Roof & Low Roof

• Toyota HiAce – High Roof

Other van models may be compatible but are not yet tested.

Approximate Dimensions:

• External: 500, 980, 1200 or 1550mm (L) × 400mm (H) × Slimline depth

• Weight: Approx. 1.8kg to 4.8kg

• Load Rating: 50kg (tested to 80kg)

Included:

• 1 × Slimline Overhead Aluminum Cupboard

• 1 × Pre-cut opening for door installation (sizes varies by cupboard)

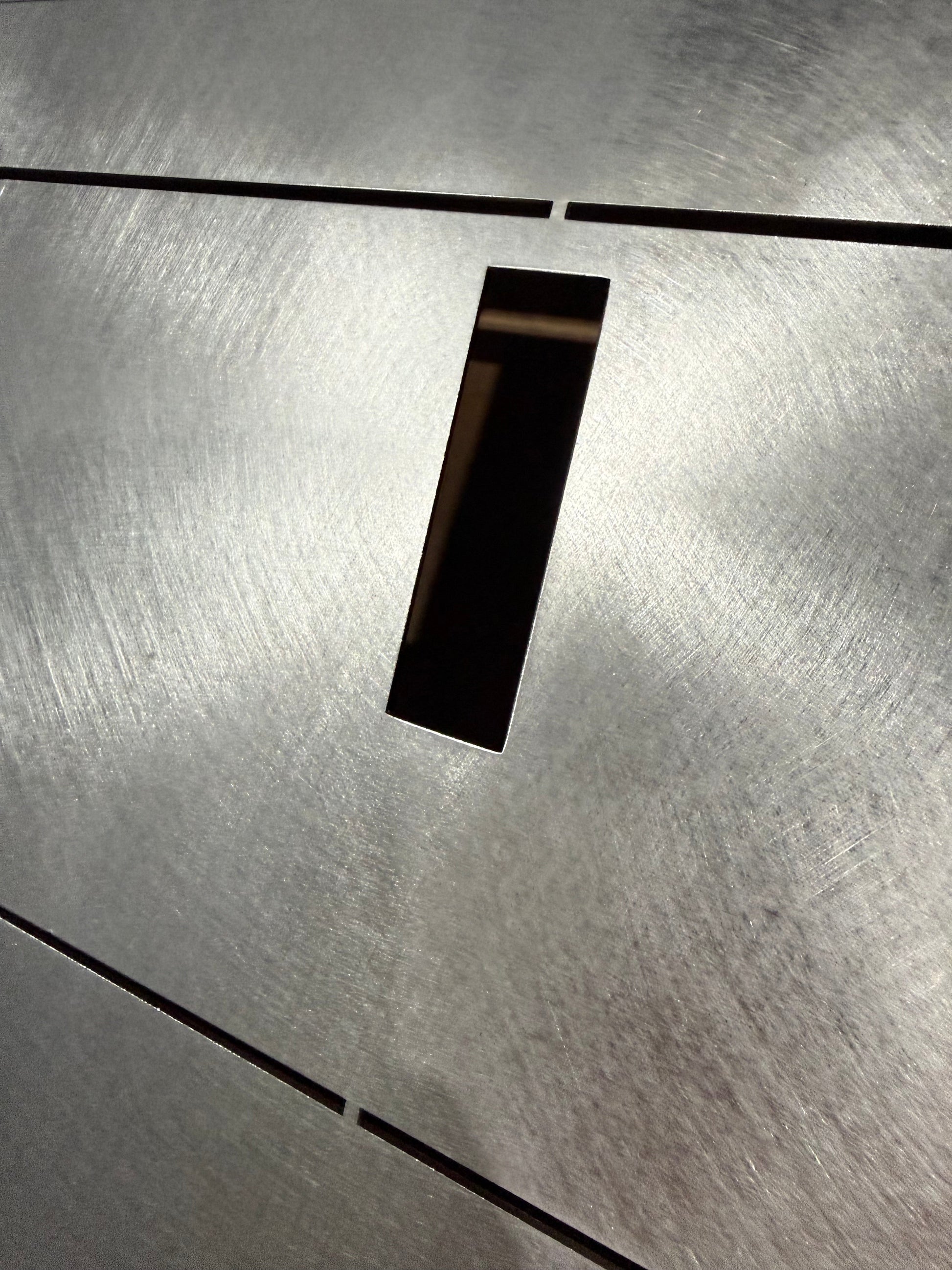

• Hinge & door stopper holes included (kits available on our website)

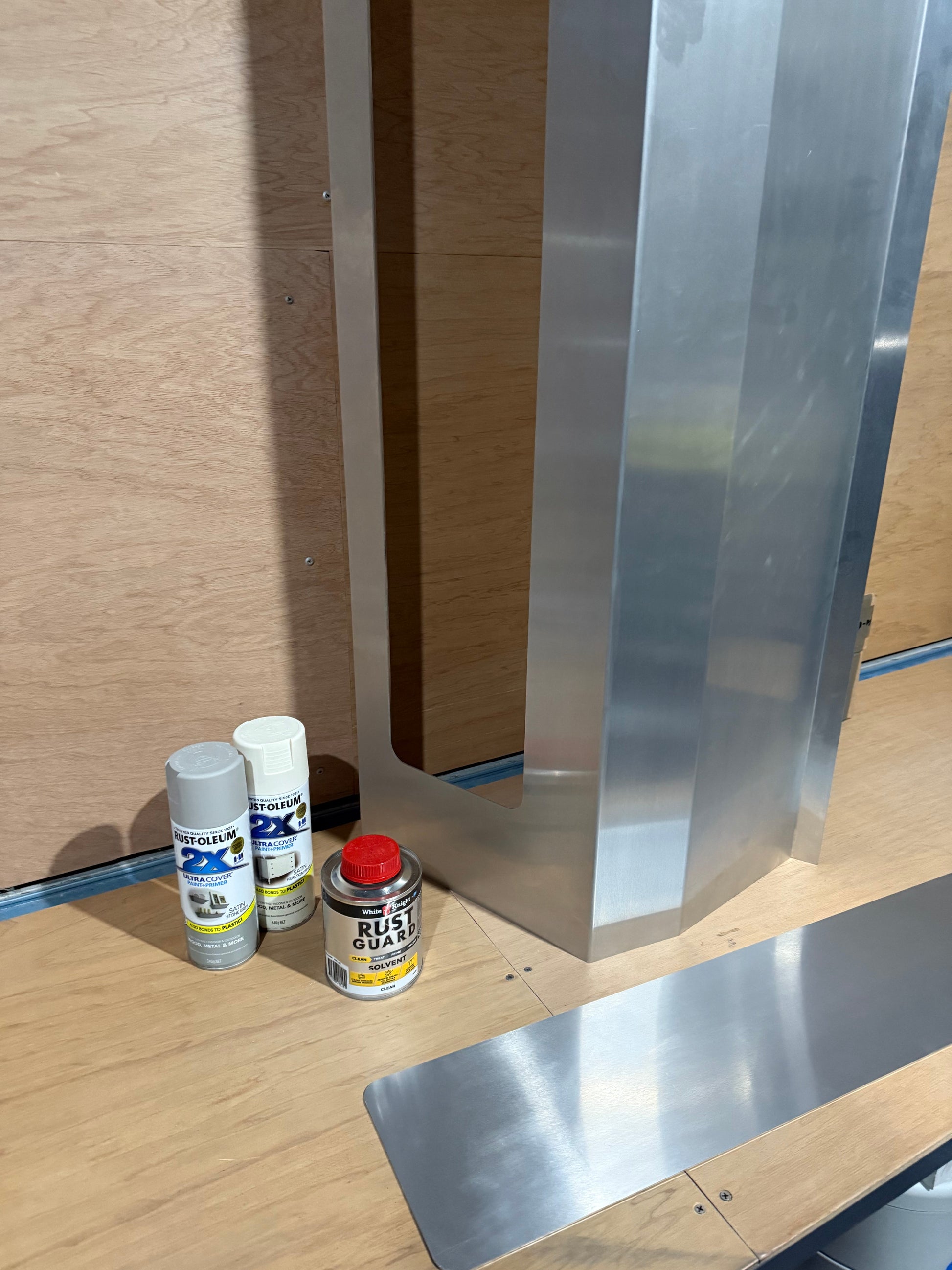

Finishing Options:

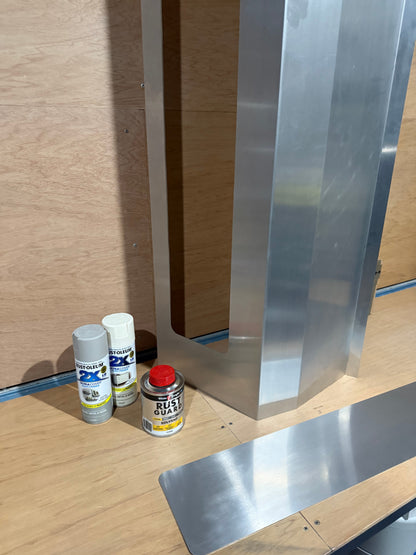

The product is supplied raw, offering full creative freedom. Recommended finishing methods include:

• Powder coating

• Spray painting (DIY or professional)

• Hand painting (roller or brush)

• Upholstering (inside & out gives a premium feel & finish)

• Leave raw for an industrial look

Installation Guidelines:

Install using 2–3mm galvanised metal self-tapping screws:

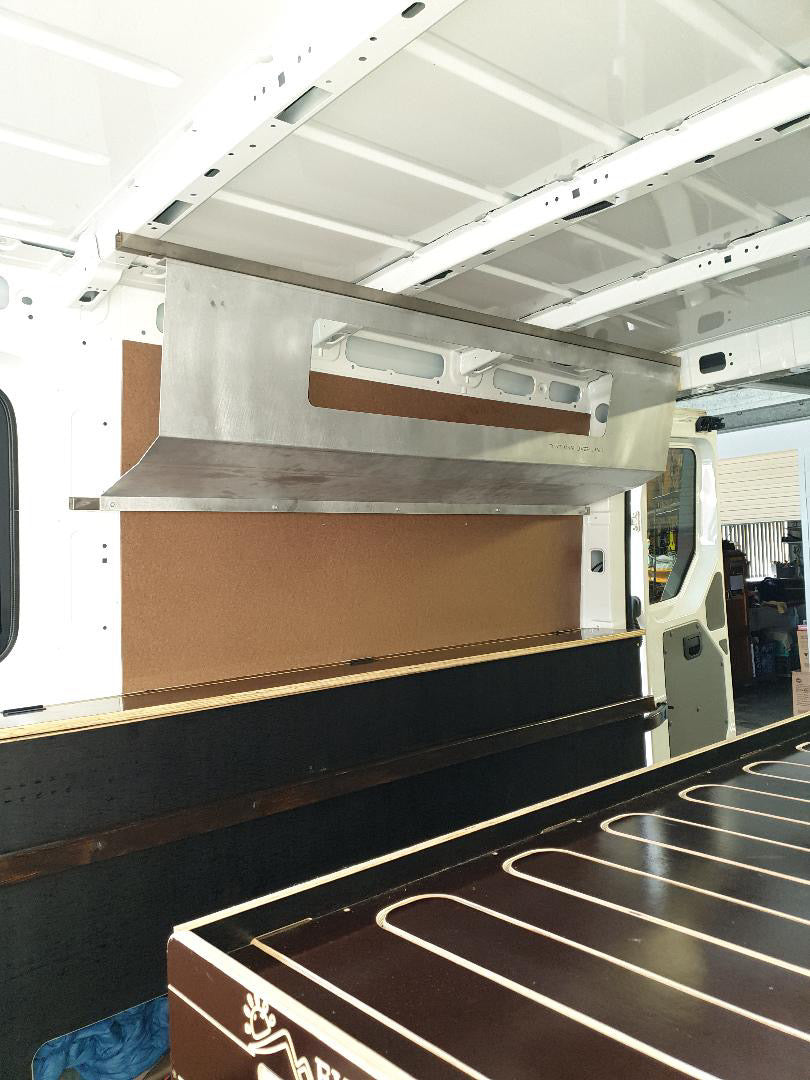

• Fix directly into the van's internal steel side frame and roof cross beams

• For fiberglass roof conversions: use timber screws into internal plywood ceiling beams

• Recommended: 5 fixing points in the ceiling and 5 along the walls (evenly spaced where possible)

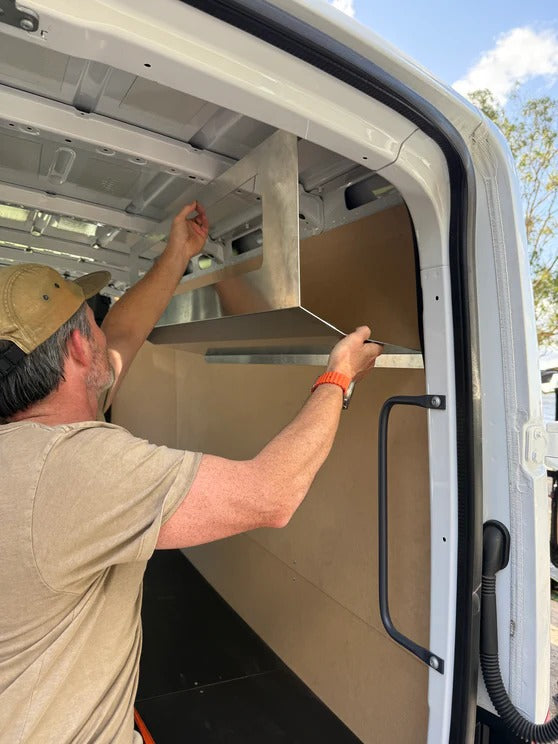

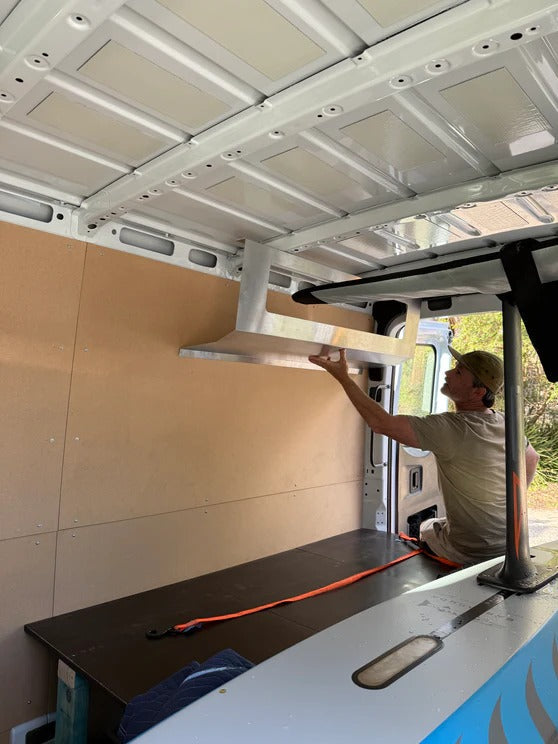

Quick install/removal: Units can be installed in minutes by a person with basic tools. Removable in under a minute, allowing easy access for electrical upgrades, part swaps, or refinishing.
Flex note: Slight flex in the cupboard is normal and helps it conform to the internal curve of the vehicle, this however may limit the end caps.

Wholesale Availability:

Wholesale pricing is available. Please contact us directly for trade rates or bulk order enquiries.
